Product Overview

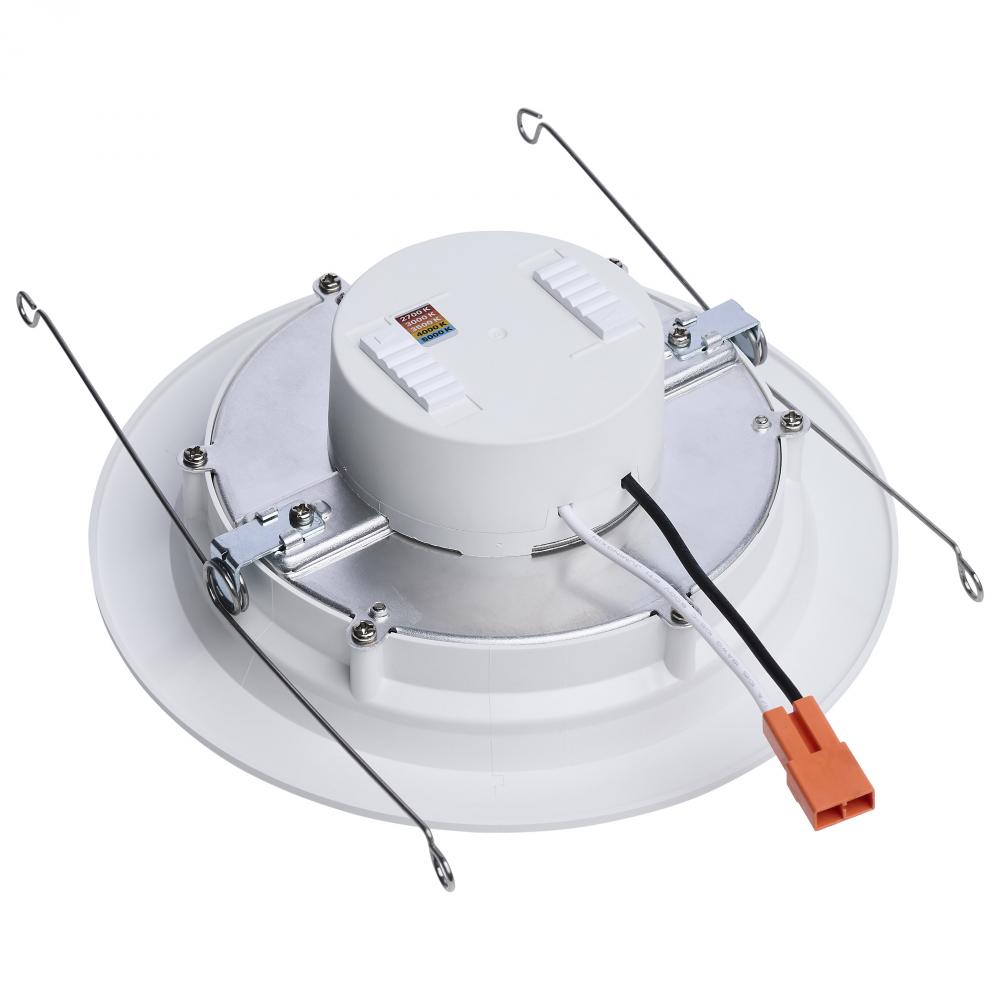

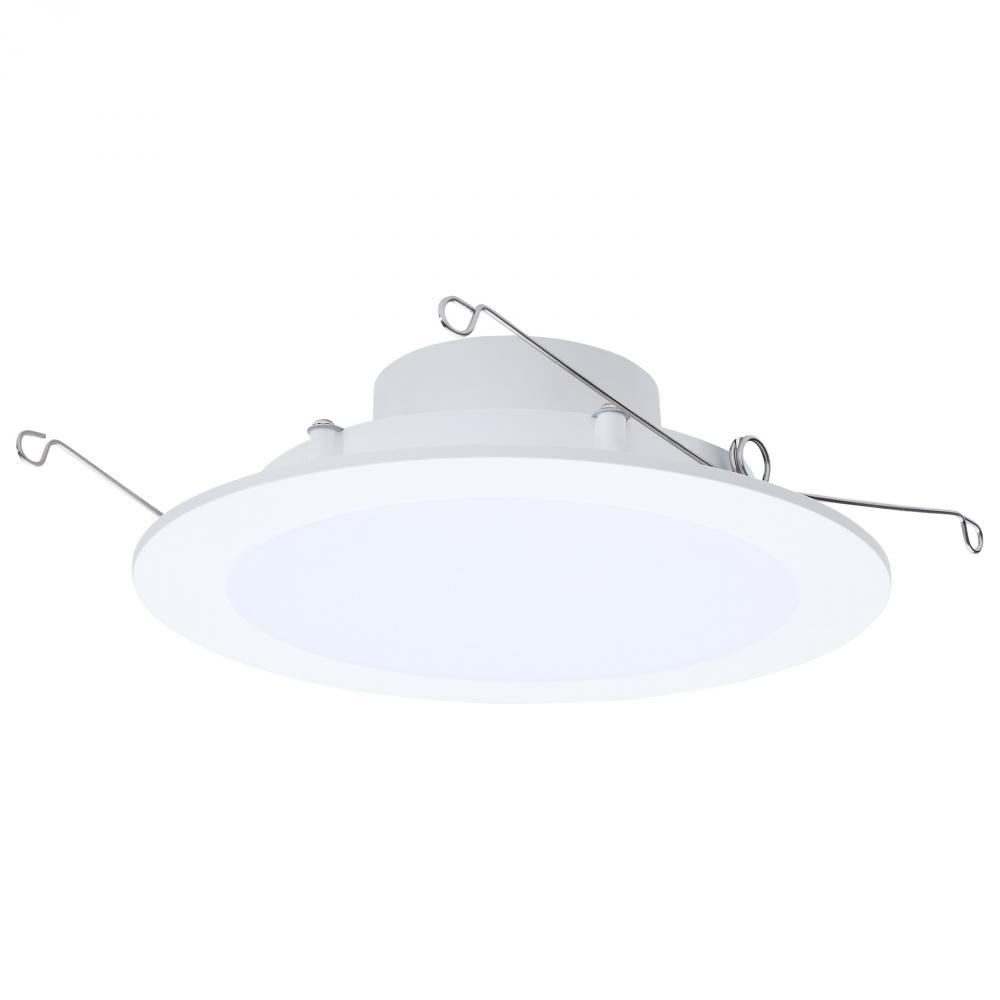

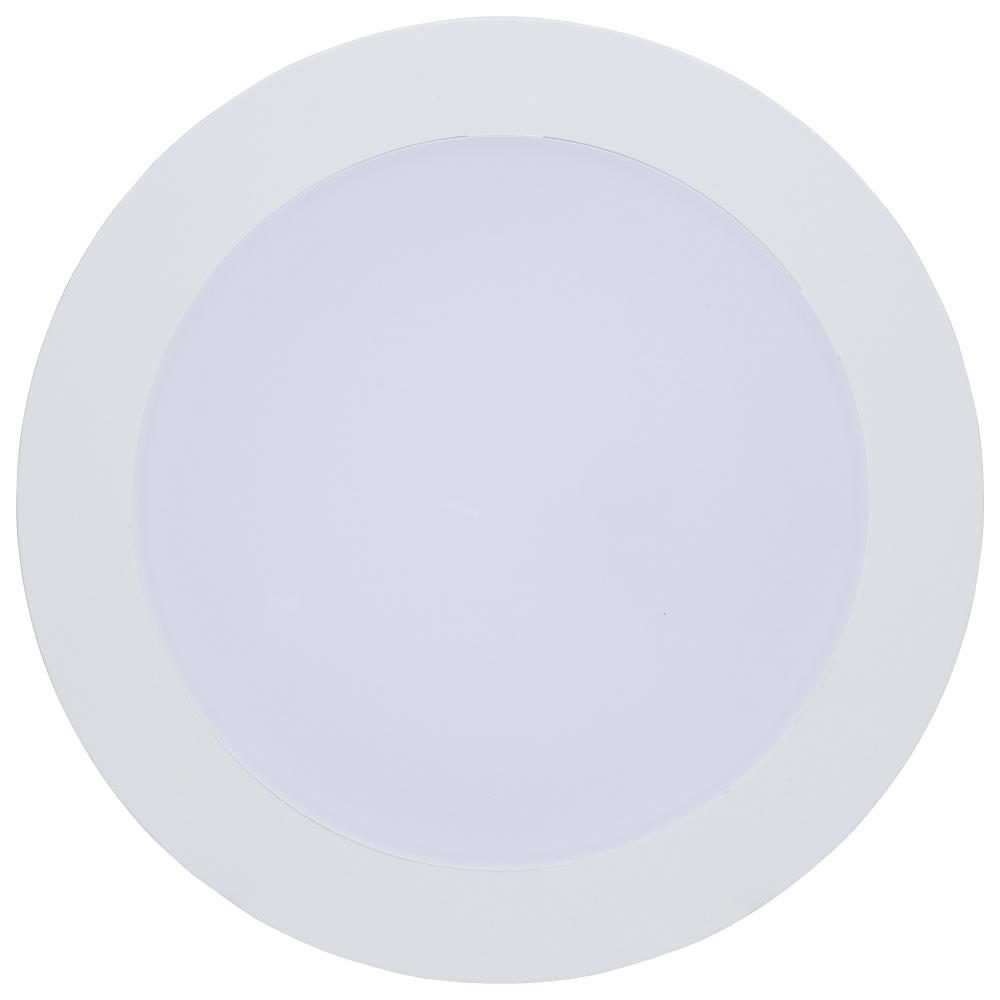

9/11/13 Watt LED Downlight Retrofit; 27K/30K/35K/40K/50K CCT; 6 Inch; Flat Wafer; Round; Matte White Finish

Standard Information

Option:

Energy Star

LED

Prop 65

Refinement Options

Category:

Recessed

Sub Category:

Retrofits

Style:

Utility

Bulb Hours:

50000

Bulb Kelvin:

Warm White to Natural Light

Bulb Type:

LED

Diameter:

7.28

Dimmable:

Yes-Dimmable

Harmonized Codes:

8539.52.0091

Lumens:

900L/1200L/1400L

Ship Carton Height:

7.68

Ship Carton Length:

7.32

Ship Carton Width:

2.4

Warranty:

5-Years

Air Tight:

Yes

Amps:

0.11/0.125/0.135A

ANSI Base:

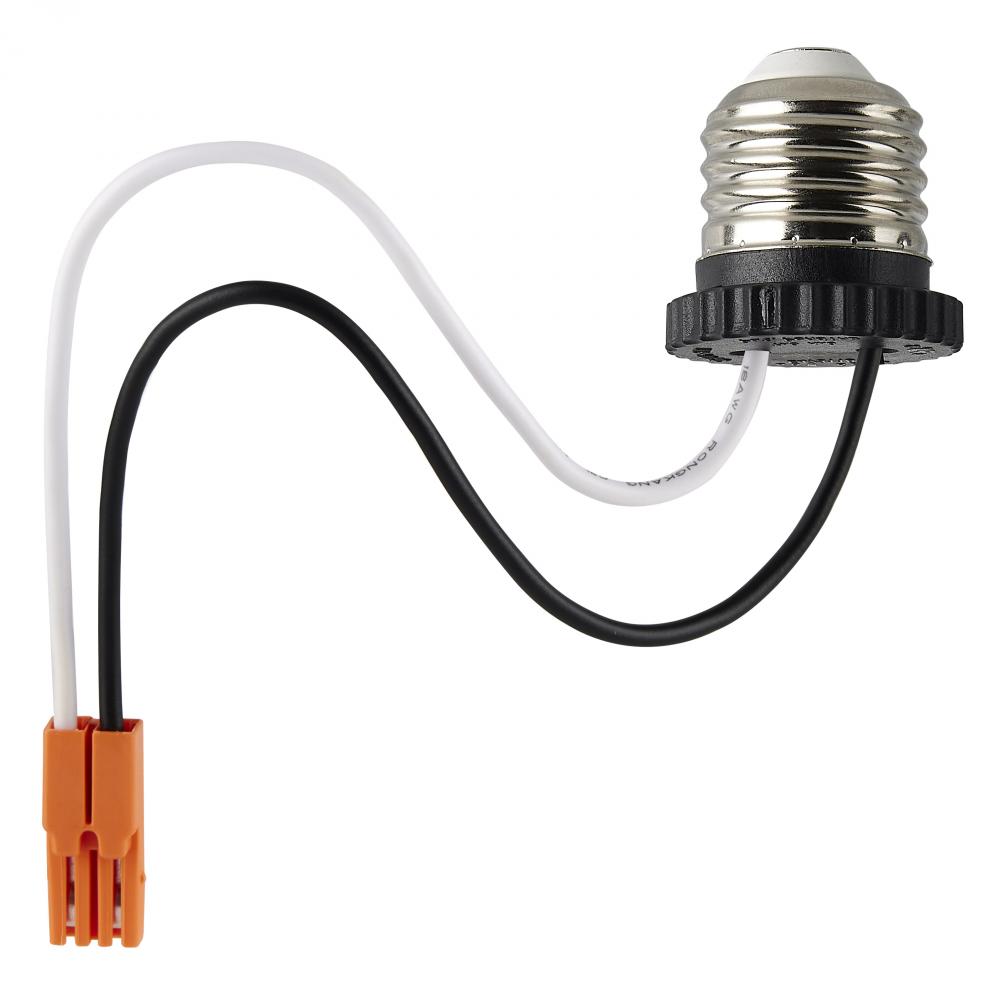

E26 Adapter

Beam Spread:

110

CA Prop-65:

Lead

Can Size:

6 in.

Carton Cubic Feet:

0.0781

Cartons Per Unit:

1

CCT Selectable:

Yes

CEC:

California T24 2016 - 2022 JA8 Listed; T20 Listed

CEC Terse:

Lawful for sale in California

CEC Web Text:

Lawful for sale

Country Of Origin:

China

CRI:

90+

Dimmable Down To:

100 to 10 percent

Dimming Type:

Phase cut

Efficacy:

100.00/109.09/107.69 LPW

ES Category:

Downlight Solid State Retrofit

ES Unique ID:

ESID-3994240

FCC Compliant:

Yes

Feature 1:

Field Selectable (3 wattages and 5 CCT)

Feature 10:

5 Year Warranty

Feature 2:

Flat Lens Design for Reduced Glare

Feature 3:

Non-Conductive "Dead-Front" Trim

Feature 4:

6-Inch Round, White Finish

Feature 5:

Airtight Rated

Feature 6:

90 CRI High Quality Illumination

Feature 7:

Dimmable

Feature 8:

Wet Location Rated

Feature 9:

50,000 Hour Functional Life

Finish Family:

White

Fixture shape:

Round

IC Rated:

Yes

Incandescent Equivalent:

85W

Indoor Outdoor:

Indoor

JA8 Compliant:

Yes

Lens Finish:

Matte Frosted

Lens Material:

Polycarbonate (PC)

Long Description:

SATCO NUVO's S11896 is a 6-inch, flat-faced PRO Series LED wafer-style retrofit downlight that pairs sleek design with field-selectable performance. Offering three selectable wattages (9W/11W/13W) and five color temperatures (2700K–5000K) via an on-u

Material:

Plastic

Mounting Diameter:

6

Operating Frequency:

60Hz

Operating Temprature:

-20C (-4F) to +40C (+104F)

Order In Multiples Of:

1

Pack Type:

Box

Power Factor:

>0.9

Quantity In Pack:

1

R9 Value:

50

Replaceable Light Source:

No

RoHS Compliant:

Yes

Romance Copy:

SATCO NUVO's PRO Series LED wafer-style retrofit downlights offer a sleek, high-performance lighting solution with effortless installation. Designed for versatility, these downlights come in 4-inch and 6-inch round models with a choice of flat-face or

Safety Listing:

cETLus - Classified

SDS class:

LED_Fixture

Short Description:

13WLED/DLR/6/FS/WF/RND/WH

Sloped Ceiling Compatible:

No

Specification Notes:

Default CCT setting is 2700K; Default Wattage setting is 11W

Temperature (CCT):

2700K/3000K/3500K/4000K/5000K

Title 20 Compliant:

Yes

Title 24 Compliant:

Yes

Total Harmonic Distortion:

<20%

Trim Material:

Plastic (PS)

Wattage Selectable:

Yes

Weight Lb.:

0.55

Manufacturer Info

Manufactured By:

Satco Products Inc.
