Satco Products Inc.

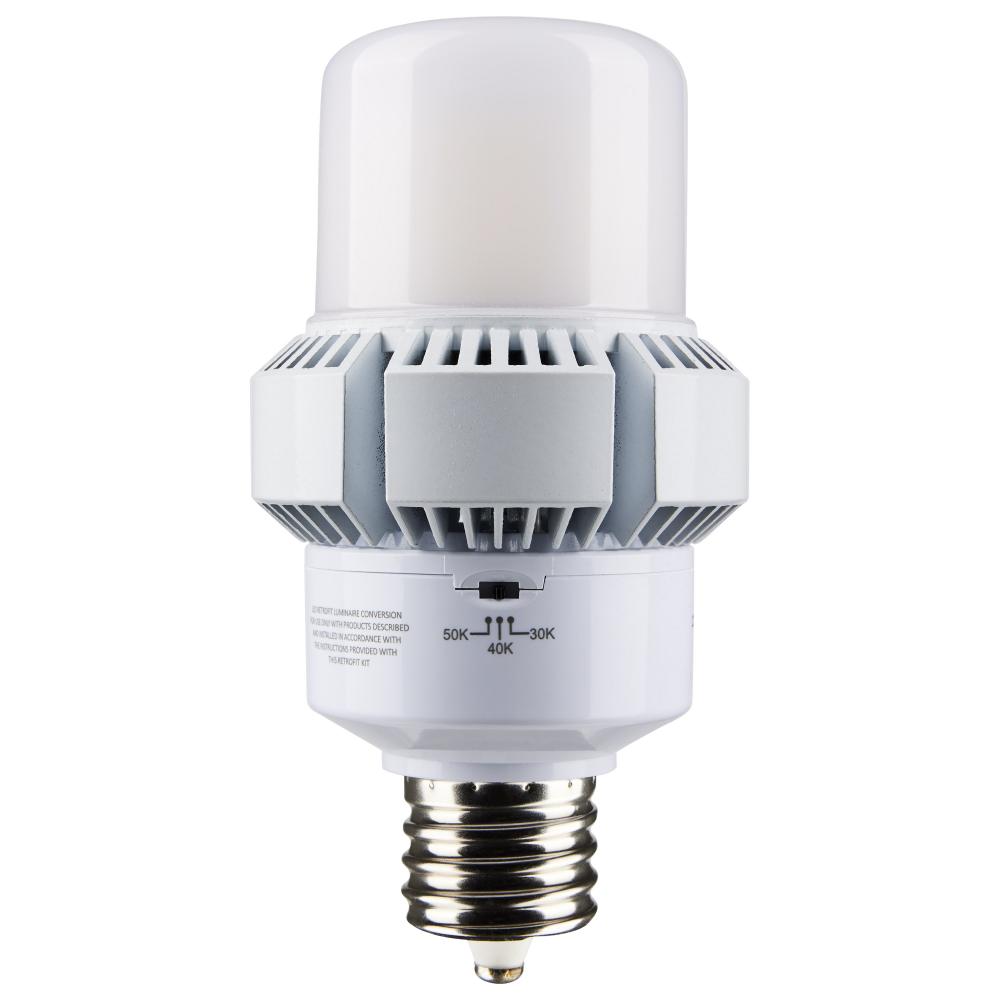

45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast (S13165)
$65.90
Call For Price
Enlarge Image
Description:
45 Watt; A-Plus 32; LED; CCT Selectable and Wattage Selectable; Extended Mogul base; Type B; Ballast Bypass; ColorQuick Technology; PowerQuick Technology
Availability:
  • Manufacturer has 508 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 3.90"
Additional Details:
right arrow Finish Family: White
right arrow Category: LED
right arrow Sub-Category: HID Replacements
right arrow Volts: 120V-277V
right arrow Bulb Hours: 50000
right arrow Bulb Kelvin: 3000K/4000K/5000K
right arrow Bulb Shape: AP32
right arrow Diameter: 3.9
right arrow EA Length: 4.65
right arrow Harmonized Codes: 8539.52.0010
right arrow Length: 7.32
right arrow Lumens: 5850L/3060L
right arrow Shap Carton Width: 4.65
right arrow Ship Carton Height: 9.25
right arrow Ship Weight: 1.75
right arrow Warranty: 5-Years
right arrow Weight: 1.38
right arrow BAA Compliant: No
right arrow Ballast Bypass Direct: Ballast Bypass
right arrow Ballasting Requirements: Ballast Bypass
right arrow Beam Spread: 280
right arrow Bulb ANSI Base: EX39
right arrow Bulb Base: Mogul Extended
right arrow Bulb Finish: White
right arrow Burning Position: Universal
right arrow Carton Cubic Feet: 0.1157
right arrow Cartons Per Unit: 1
right arrow CCT Selectable: Yes
right arrow CEC: Exempt - Base Not Regulated
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: Lawful for sale
right arrow Color Temprature: Warm to Cool White
right arrow Country Of Origin: China
right arrow CRI: 80+
right arrow Dimming Type: Step Dimming
right arrow DLC Approved: Yes
right arrow DLC Classification: Standard
right arrow DLC ID: S-GNP8VX
right arrow DLC Primary Use: Replacement Lamps for Outdoor Pole/Arm-Mounted Decorative Luminaires (Type B)
right arrow Efficacy: 130.00/139.09 LPW
right arrow Enclosed Fixture Use: Yes
right arrow Enclosure Rating: Enclosed Rated Lamp
right arrow FCC Compliant: Yes
right arrow Feature 1: Advanced heat sink design ensures long lifespan, less maintenance
right arrow Feature 2: ColorQuick CCT selectable technology and PowerQuick Wattage selectable technology available with selection switch
right arrow Feature 3: Damp location rated for indoor or outdoor use
right arrow Feature 4: Rated for totally enclosed fixtures
right arrow Feature 5: Reduced jacket size and built-in surge protection
right arrow Feature 6: FCC/RoHS compliant
right arrow Feature 7: Dimmable; 80 CRI light quality
right arrow Flourescent Equivalent: 100W
right arrow Has Driver: No
right arrow Has Emergency Battery: No
right arrow HID Equivalent: 150W-175W
right arrow Housing Color: White
right arrow Incandescent Equivalent: 300W
right arrow Indoor Outdoor: Indoor;Outdoor
right arrow Installation Notes: Not for use in vapor tight fixtures.
right arrow IOT Enabled: No
right arrow IP Rating: IP64
right arrow JA8 Compliant: No
right arrow Lamp Ballast Type A/B/C: Type B
right arrow Lamp Filament: LED
right arrow Lens Finish: Frost
right arrow Lens Material: Polycarbonate (PC)
right arrow Location Rating: Damp
right arrow Long Description: S13165, SATCO NUVO's 45-watt EX39 base A-Plus 32 lamp, is one of the newest additions to the Hi-Pro LED family, providing up to 85% energy savings and advanced features. ColorQuick CCT and PowerQuick wattage selectable technologies mean more versatilit
right arrow Material: Aluminum
right arrow Minimum Compartment Size: Length: 6 in. Width: 6 in. Height: 8.5 in.
right arrow Operating Frequency: 50/60Hz
right arrow Operating Temp: -22C (-30F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 15
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's newest additions to the Hi-Pro LED family provides up to 85% in energy savings, and advanced features. CCT and wattage selectable capability means more versatility and custom-tailored light for specific applications. Designed to produce hi
right arrow SDS class: LED_Lamp
right arrow Short Description: 45W/AP32/LED/CCT/100-277V/EX39
right arrow Specification Notes: Lumen/Watt/CCT Ratio Chart in Documents.
right arrow Style: Contemporary
right arrow Surge Protection: Built-in surge protection - 3KV
right arrow Technology: LED
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: No
right arrow Total Harmonic Distortion: 15%
right arrow Wattage Selectable: Yes
right arrow Watts: 45W/22W
right arrow Standard Category: Light Bulbs
right arrow Standard Subcategory: LED Bulbs
right arrow Standard Lumens: 3300+
right arrow Standard Kelvin: 3001-3500
Vendor Item #:
S13165
Internal #:
LNMPA
