Generation Lighting

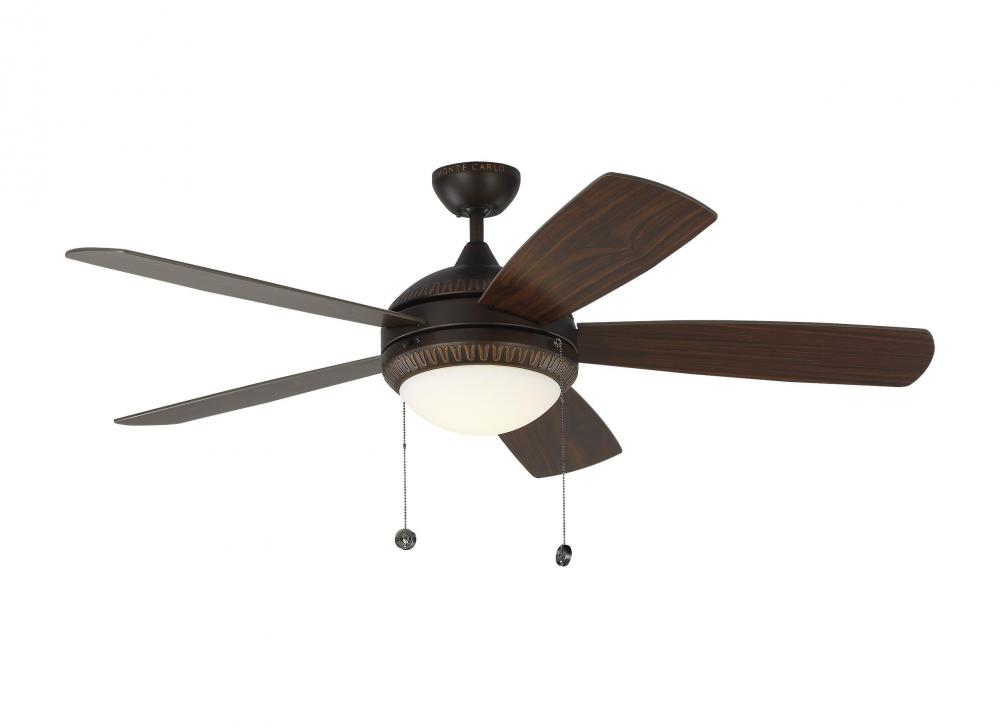

Discus 52" Ceiling Fan (5DIO52RBD)
$310.00
Call For Price
Enlarge Image
Description:
The Discus 52 LED in Roman Bronze features a 153.0 X 18.0 3-speed motor with a Twelve-degree blade pitch. We've expanded the best-selling Discus 52" fan by adding traditional detailing to the housing that elevates the design. The 5-blade Discus features an integrated 20W LED light with 715 lumens output, pull-chain operation with three speeds, and manual reverse.
Availability:
  • Manufacturer availability unknown.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 52.00"
Additional Details:
right arrow Category: Ceiling Fan
right arrow Finish: Roman Bronze
right arrow Style: Traditional
right arrow Option: Title 24 ca title 24 compliant.jpg
right arrow Family: Discus
right arrow Voltage: 120 V
right arrow Number of Bulbs: 1 Bulbs
right arrow Blade Finish: Bronze
right arrow Blade Pitch: 12
right arrow Blade Span: 52
right arrow Bulb Type: Array
right arrow Canopy: 5.13 Dia
right arrow Introduction Date: 01/01/2018
right arrow Kelvin: 2700
right arrow Keyword(s): Bedroom, Family Room, Office
right arrow Light Kit Included: Yes
right arrow Lumens / Light Output: 715
right arrow Motor Size: 153 x 18 mm
right arrow Motor Type: AC
right arrow Order Minimum: 1
right arrow Remote Control Included: No
right arrow Ship Carton Height: 8.75
right arrow Ship Carton Length: 23.5
right arrow Ship Carton Width: 13.25
right arrow Ship Weight: 21.9
right arrow Sold By: EA
right arrow Vendor Ship Method: Parcel
right arrow Weight: 19.2
right arrow Blade To Ceiling Height: 10.6
right arrow Bulb Base: 19 - Integrated
right arrow Bulb CRI: 90
right arrow Bulb Dimming Range Max: 100
right arrow Bulb Dimming Range Min: 10
right arrow Bulb Included: Yes
right arrow Bulb Light Source Name: LED
right arrow Bulb Rated Life: 50000
right arrow Bulb Watts Rated: 20
right arrow Canopy Style: Downrod
right arrow CFM High: 4758
right arrow CFM Low: 1892
right arrow CFM Watt High: 73
right arrow CFM Watt LOW: 135
right arrow Country of Origin: China
right arrow Downrod Diameter: 0.5
right arrow Downrod Length: 4.5
right arrow Energy Star: No
right arrow Fan Style: Traditional
right arrow Freight Class: 110
right arrow Lamping: 1 Array Integrated 20 Watt Light Bulb
right arrow Location Rating: Dry Rated
right arrow Max Ceiling Slope: 30
right arrow Max Wattage: 20 W
right arrow Maximum Blade To Ceiling Height: 10.6
right arrow Minimum Blade To Ceiling Height: 9.2
right arrow Minimum Ceiling Height Required: 7.88
right arrow Number of Blades: 5
right arrow Overall Height: 15.1
right arrow Qty Fabric Glass Shades: 1
right arrow Safety Rating: cETL Approved
right arrow Shade Diameter: 9
right arrow Shade Finish: Matte Opal
right arrow Shade Shape: Round
right arrow Standard Efficiency: 83
right arrow Standard Energy Use Wave: 41
right arrow Standard Estimated Yearly Energy Cost: 11
right arrow Standard Weighted Average Airflow: 3415
right arrow Title 24: Yes
right arrow TSCA Title VI Compliant: Yes
right arrow Watts High: 65
right arrow Watts Low: 14
right arrow Standard Category: Fans
right arrow Standard Subcategory: Ceiling Fans with Light
right arrow Standard Finish: Bronze
right arrow Standard Style: Traditional
right arrow Standard Option: Dry Rated
right arrow Standard Voltage: 100-120
right arrow Standard Glass Finish or Style: Opal
right arrow Standard Lumens: 450-800
right arrow Standard Number of Blades: 5 Blades
right arrow Standard Kelvin: 2501-3000
Vendor Item #:
5DIO52RBD
Internal #:
AAZ6T
