Generation Lighting

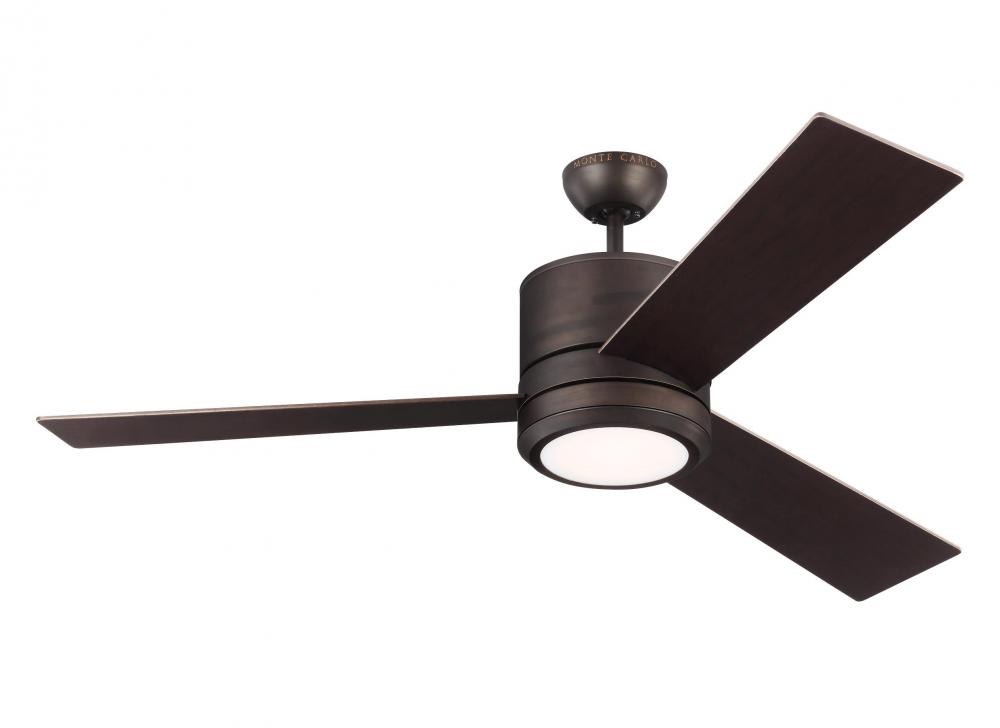

Vision 56 LED - Roman Bronze (3VNMR56RBD-V1)
$499.00
Call For Price
Enlarge Image
Description:
The Vision 56 in Oil Rubbed Bronze features a 172.0 X 20.0 4-speed motor with a Twelve-degree blade pitch. Similar to the popular Clarity hugger ceiling fan series, the Vision 56 is sleek and modern but comes with a downrod to bring the fan down into the room when ceiling space allows. Its offered in four finish combinations to suit virtually any decor requirement. Damp-rated for indoor/outdoor use, the Vision 56 also comes with a four-speed wall control with an LED dimmer.
Availability:
  • Manufacturer availability unknown.
Required Components:

Optional Accessory:

Dimensions:
right arrow Width: 56.00"
Additional Details:
right arrow Category: Ceiling Fan
right arrow Finish: Roman Bronze
right arrow Style: Modern
right arrow Option: Damp Rated , Title 24 ca title 24 compliant.jpg
right arrow Family: Vision 56
right arrow Voltage: 120
right arrow Number of Bulbs: 1 Bulbs
right arrow Blade Finish: Roman Bronze
right arrow Blade Pitch: 12
right arrow Blade Span: 56
right arrow Bulb Type: LED - Array
right arrow Canopy: D:5 1/8'' H:2 1/4'' Round
right arrow Introduction Date: 01/01/2016
right arrow Kelvin: 2700
right arrow Keyword(s): Bathroom, Enclosed Patios/Porches, Garage
right arrow Light Kit Included: Yes
right arrow Lumens / Light Output: 950
right arrow Motor Size: 172 x 20 mm
right arrow Motor Type: AC
right arrow Order Minimum: 1
right arrow Remote Control Included: Yes
right arrow Ship Carton Height: 11
right arrow Ship Carton Length: 27.13
right arrow Ship Carton Width: 11.5
right arrow Ship Weight: 23
right arrow Sold By: EA
right arrow Vendor Ship Method: Parcel
right arrow Weight: 17.16
right arrow Blade To Ceiling Height: 12
right arrow Bulb Base: 19 - Integrated
right arrow Bulb CRI: 90
right arrow Bulb Dimming Range Max: 100
right arrow Bulb Dimming Range Min: 10
right arrow Bulb Included: Yes
right arrow Bulb Light Source Name: LED
right arrow Bulb Rated Life: 50000
right arrow Bulb Volts: 120
right arrow Bulb Watts Consumed: 20
right arrow Bulb Watts Rated: 20
right arrow Canopy Diameter: 5.12
right arrow Canopy Style: Downrod
right arrow Capacitor Value: 4.5uF/350V/105C
right arrow CFM High: 5203
right arrow CFM Low: 1216
right arrow CFM Watt High: 81
right arrow CFM Watt LOW: 174
right arrow Country of Origin: China
right arrow Damp Rated: Yes
right arrow Downrod Diameter: 0.5
right arrow Downrod Length: 4.5
right arrow Energy Star: No
right arrow Fan Style: Traditional
right arrow Freight Class: 110
right arrow Lamping: 1 Array Integrated 20 Watt Light Bulb
right arrow Max Ceiling Slope: 30
right arrow Max Watt: 20
right arrow Maximum Blade To Ceiling Height: 12
right arrow Minimum Blade To Ceiling Height: 10.7
right arrow Minimum Ceiling Height Required: 8
right arrow Number of Blades: 3
right arrow Overall Height: 14
right arrow Qty Fabric Glass Shades: 1
right arrow Remote Control Type: Wall Mount Control, 4-Speed, Dimmer and Manual Reverse
right arrow Safety Rating: C-UL-US Approved
right arrow Shade Diameter: 7
right arrow Shade Finish: Frosted
right arrow Shade Shape: Round
right arrow Standard Efficiency: 89
right arrow Standard Energy Use Wave: 37
right arrow Standard Estimated Yearly Energy Cost: 10
right arrow Standard Weighted Average Airflow: 3334
right arrow Title 24: Yes
right arrow TSCA Title VI Compliant: Yes
right arrow Watts High: 64
right arrow Watts Low: 7
right arrow Standard Category: Fans
right arrow Standard Subcategory: Ceiling Fans with Light
right arrow Standard Finish: Bronze
right arrow Standard Style: Modern
right arrow Standard Option: Title 24 ca title 24 compliant.jpg , Damp Rated ca title 24 compliant.jpg
right arrow Standard Voltage: 100-120
right arrow Standard Lumens: 801-1100
right arrow Standard Number of Blades: 3 Blades
right arrow Standard Kelvin: 2501-3000
right arrow Standard Location Rating: Damp Rated
right arrow Standard Wattage: 20w
Vendor Item #:
3VNMR56RBD-V1
Internal #:
AEVYA
